Product Details
Place of Origin: China
Brand Name: NMFIRE
Certification: UL, NFPA20
Model Number: Vertical In-Line
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Packaging Details: Sea Worthy Standard Packing
Delivery Time: 65 Working Days
Payment Terms: T/T,D/P,D/A
Certification: |
UL, NFPA20 |
Specification: |
2"x2"/ 3"x2.5"/ 4"x3"/ 6"x4"/ 6"x5"/ 8"x6" |
Material: |
Ductile Cast Iron / SS304 |
Flow: |
50~1500 GPM |
Pressure Range: |
40~198 PSI |
Speed: |
1760rpm / 2980rpm / 3550rpm |
Drive Type: |
Electric Motor Driven |
Voltage: |
380v / 400v/ 415v / 220v ( Customizable) |
Application: |
Fire Fighting For Commercial Project |
Color: |
Red |
MOQ: |
1 PC |
Lead Time: |
65 Working Days |
Warranty: |
18 Months After Shipping Date Or12 Months After The Date Of Commissioning At The First User. |
Certification: |
UL, NFPA20 |
Specification: |
2"x2"/ 3"x2.5"/ 4"x3"/ 6"x4"/ 6"x5"/ 8"x6" |
Material: |
Ductile Cast Iron / SS304 |
Flow: |
50~1500 GPM |
Pressure Range: |
40~198 PSI |
Speed: |
1760rpm / 2980rpm / 3550rpm |
Drive Type: |
Electric Motor Driven |
Voltage: |
380v / 400v/ 415v / 220v ( Customizable) |
Application: |
Fire Fighting For Commercial Project |
Color: |
Red |
MOQ: |
1 PC |
Lead Time: |
65 Working Days |
Warranty: |
18 Months After Shipping Date Or12 Months After The Date Of Commissioning At The First User. |

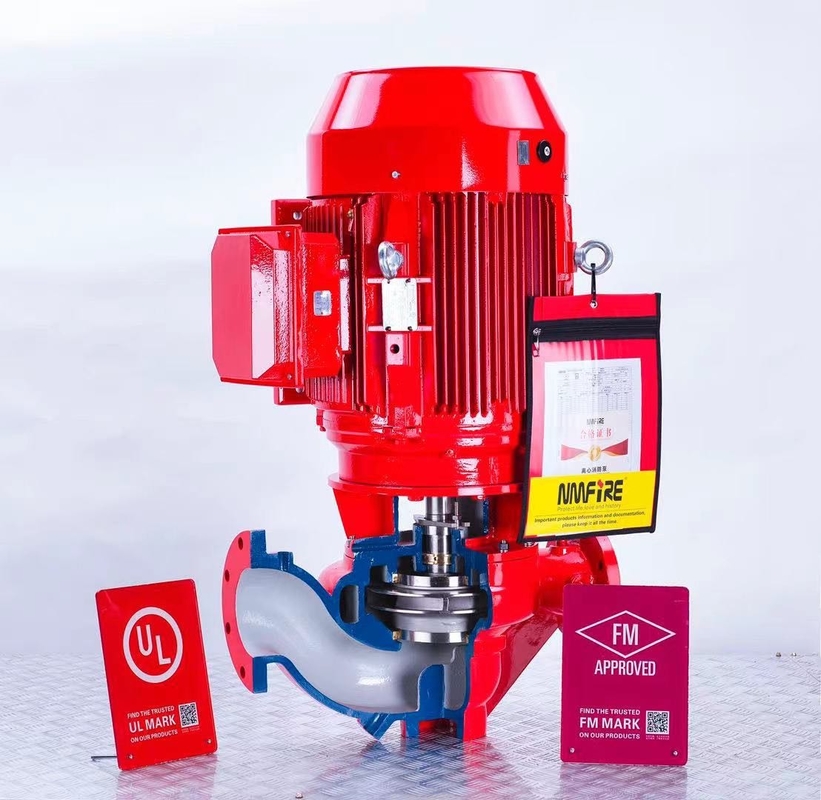

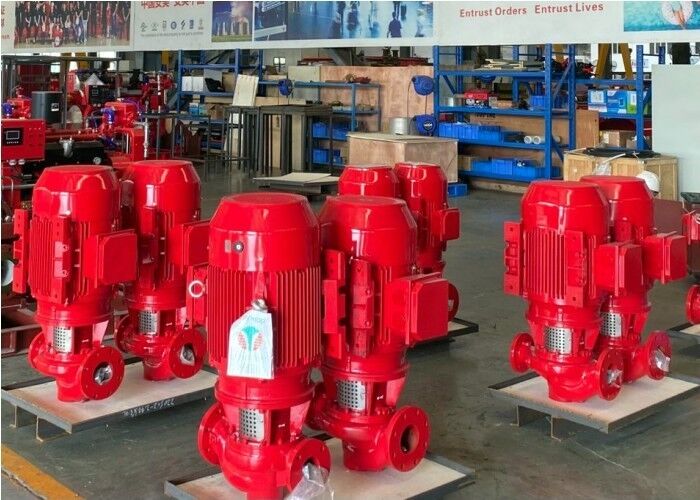

UL/FM 50 to 1500 GPM In-Line Centrifugal Fire Pump | NFPA20
We supply UL/FM certified in-line centrifugal fire pumps with flow rates from 50 to 1500 GPM. Fully compliant with NFPA20, these space-saving pumps are ideal for commercial, industrial and high-rise fire protection. One-stop service including customization, logistics and after-sales support.
This UL/FM certified in-line centrifugal fire pump series covers a wide flow range from 50 GPM to 1500 GPM. Designed for space-saving installation, it features high efficiency, stable operation and long service life. Fully complying with NFPA20 standards, it is built to meet the strict requirements of modern fire protection systems.
The in-line design reduces piping costs and installation space, making it perfect for hotels, hospitals, commercial buildings, industrial plants and high-rise residences. We support customized solutions for different voltage, frequency and application scenarios, providing reliable solutions for global markets including Africa, the Middle East and Asia.
We offer professional one-stop service: free technical sizing, parameter customization, global logistics, customs clearance and 24/7 after-sales support. All our pumps come with complete UL/FM certification documents and technical manuals. Contact us for a detailed quotation tailored to your project flow rate requirement.
