Ul Fm Approved Fire Pumps / Hospital Electric Motor Driven Water Pump Split Case Centrifugal Pump 91M3/H 134m
| Place of Origin | China |
|---|---|
| Brand Name | CNP NM FIRE |
| Certification | UL /FM/NFPA20 |
| Model Number | SCF125-100-300(UL/FM) |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Export Packing |
| Delivery Time | 60 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor | TECHTOP&UL | Driving | Motor Driver |
|---|---|---|---|
| Controller | Tornatech (UL/FM) | Capacity | 91M3/H |
| Head | 134m | Engine | TECHTOP&UL |
| High Light | electric motor driven pump,electric motor driven water pump,Split Case Centrifugal Pump 134m |
||
Product Description
-
split case centrifugal pump Electic Motor Driven 91M3/H 134m UL FM approved fire pump fire fighting pump
-

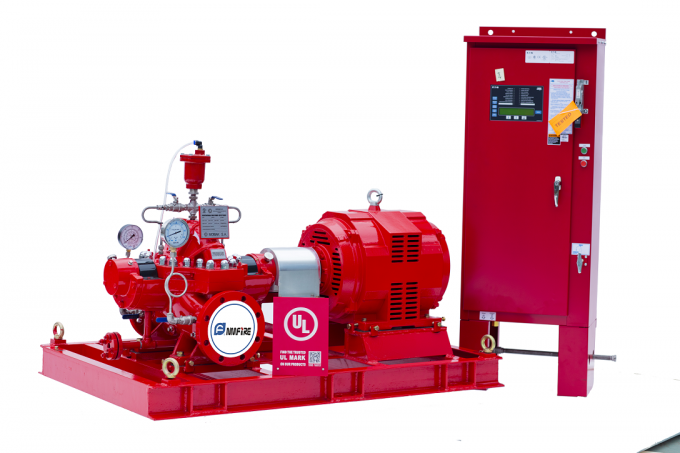

Split Case Motor Pump SetProduct Details
| Motor Pump Set | ||
| NM Fire Split Case Pump | ||
| Model | SCF125-100-300(UL/FM) | This Electric pump Set includes the pump(air relieve vlave , inlet & outlet gauges) , Motor, Control System,Commonbase. |
| Capacity | 91M3/H | |
| Head | 134m | |
| RPM | 2980rpm | |
| Material: | ||
| Casing | Ductile Cast iron | |
| Impeller | SS304 | |
| Shaft | AISI 4340 | |
| Shaft sleeve | SS304 | |
| Seal | Gland packing | |
| Wear ring | Bronze | |
| Bearing | SKF | |
| Engine: TECHTOP&UL | ||
| Model: | TDC 365TS100U2B | |
| 100HP/50HZ/380V/3PH | ||
| Controller : Tornatech (UL/FM) | ||
| Model: | GFY - 380 / 100/ 3 / 50 / A4 | |
Standards
NFPA20, UL, FM, EN12845,CCCF Performance Ranges UL : Q: 100-750GPM H:70-152PSI FM: Q: 100-750GPM H:70-152PSI CCCF: Q:15-45L/S H:0.6-0.9Mpa NFPA20: Q: 100-3000GPM H:40-200PSI
-
Application:
Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, etc.
-
Five Advantages of CNP NM FIRE
①The late-mover advantage of products, we R&D better fire products than other Suppliers; ②Have the most complete and all series of fire pump models; ③Have listed diesel engines with self-owned brand--- NM FIRE； ④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services； ⑤Shorter delivery time.
Please contact us if you have any other requirements. Thanks

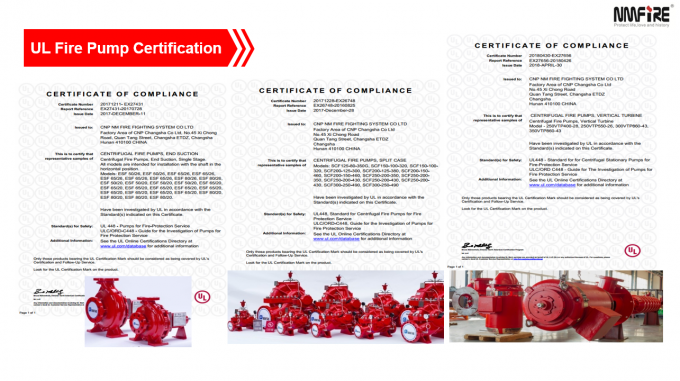

Pumps applied for UL/FM certificates
our Listed pump and Standard fire pump Pump: UL 448 FM1311 Engine: UL 1247 FM1333 Package according to NFPA20
In addition to the above models, there are many model UL/FM testing in process.
Looking forward to your enquiry.
-
FAQ
Q1.Do you have the UL-LISTED Fire Pump Sets? Yes, We have the UL/FM and NFPA standard Fire Pump Sets. Q2.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ? Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together. Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ? You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together. Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price. For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep. For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep. If you need Jockey Pump or other accessories,please tell us together.
-
Service:
1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
