High Pressure Red Electric Motor Driven Fire Pump NFPA 20 UL FM 284M3/H 2313 PSI

Place of Origin China
Brand Name CNP NM FIRE
Certification UL /FM/NFPA20
Model Number SCF200-150-420
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 60 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor TECHTOP&UL Driving Motor Driver
Controller Tornatech (UL/FM) Capacity 1250usgpm
Head 220m Impeller SS304
High Light

electric motor driven pump

,

electric motor driven water pump

,

NFPA 20 Red Fire Pump

Leave a Message
Product Description
  • Electic Motor Driven split case centrifugal pum 1250GPM 220m Techtop Motor NFPA20 Fire Fighting Pump

  • Split Case Motor Pump SetProduct Details

Diesel Engine Pump Set( Heat Exchanger)
NM Fire Split Case Pump

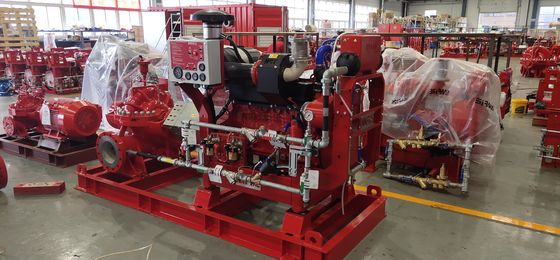

Model SCF200-150-420 This Diesel Engine Group includes the pump(air relieve vlave , inlet & outlet gauges) Diesel Engine, Commonbase, Flexible exhaust connector, Control System, Battery, Silencer, Coupling (non-listed), Cooling System.


Please contact me if you need Fuel tank, Main relief valve,Waste corn or other accessories.
Capacity 284M3/H
Head 313PSI
RPM 1800rpm
Material:
Casing Ductile Cast iron
Impeller SS304
Shaft AISI 4340
Shaft sleeve SS304
Seal Gland packing
Wear ring Bronze
Bearing SKF
Engine: NM&UL
Model: NM6-128
  457HP at 1760rpm
Controller : Tornatech (UL/FM)
Model: GPD-24-220/240

High Pressure Red Electric Motor Driven Fire Pump NFPA 20 UL FM 284M3/H 2313 PSI 0

Standards


NFPA20, UL, FM, EN12845,CCCF

Performance Ranges

UL : Q: 100-750GPM H:70-152PSI

FM: Q: 100-750GPM H:70-152PSI

CCCF: Q:15-45L/S H:0.6-0.9Mpa

NFPA20: Q: 100-3000GPM H:40-200PSI
  • Application:

Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, etc.

  • Five Advantages of CNP NM FIRE



①The late-mover advantage of products, we R&D better fire products than other Suppliers;


②Have the most complete and all series of fire pump models;


③Have listed diesel engines with self-owned brand--- NM FIRE;


④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services;


⑤Shorter delivery time.

Please contact us if you have any other requirements.

Thanks


Diesel Testing bench

High Pressure Red Electric Motor Driven Fire Pump NFPA 20 UL FM 284M3/H 2313 PSI 1



UL or NFPA 20 Compliant-non-approved

Power Range:30-2000HP
Speed Range
:1450-3000RPM
  • FAQ



Q1.Do you have the UL-LISTED Fire Pump Sets?

Yes, We have the UL/FM and NFPA standard Fire Pump Sets.


Q2.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?

Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.


Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.


Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price.

For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.

For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.

If you need Jockey Pump or other accessories,please tell us together.



High Pressure Red Electric Motor Driven Fire Pump NFPA 20 UL FM 284M3/H 2313 PSI 2
  • Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
