Payment & Shipping Terms:
|Discharge Head:||Carbon Steel||Column Pipe:||Carbon Steel|
|Seal:||Gland Packing||Suction Bell:||Ductile Cast Iron|
|Diffuser:||Ductile Cast Iron|

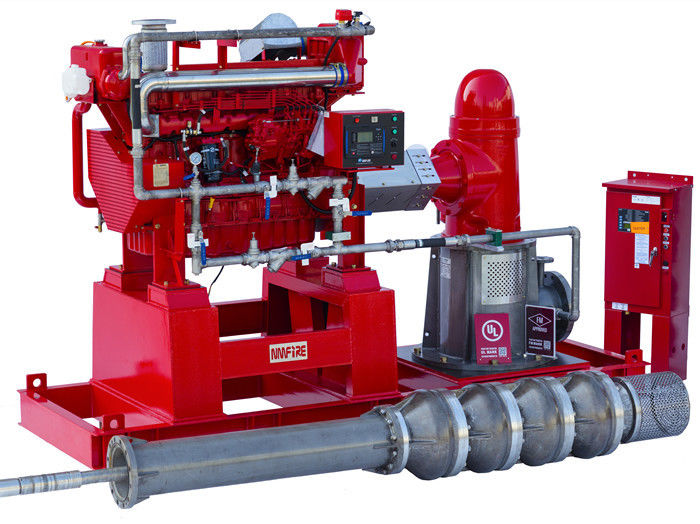

750 US GPM Vertical Turbine Pump UL / FM with Diesel Engine Driven
Description of VTP
A vertical turbine pump works when water comes through the pump from the bottom through a bell-shaped
device known as a suction bell. The water then moves into the first stage impeller, which increases the velocity
of the water. The water then moves into the diffuser casing directly above the impeller, where the high velocity
energy is transformed into high pressure. The diffuser casing also guides the fluid into the next impeller located
directly above the diffuser casing. The process goes on through all the stages in the pump.
After leaving the diffuser casing, the water passes in a vertical column pipe and rises toward the surface. The
rotating shaft within the column is propped at 3 to 5 foot intervals using sleeve bushings that are set within the
column and they are lubricated by the water as it moves past them. The pump also has a discharge head at the
surface which allows the flow to change direction toward the discharge pipe.
|Rated Flow||750 GPM|
|Rated Head||190 PSI|
|Pump : NM Fire (UL/FM )||200VTP250-22X4|
|Gear Box: SMI (FM)||H200 (Ratio: 1:1)|
|Engine: NM Fire (UL Listed)||NM6-114|
|Fuel tank: NM Fire (NFPA 20)||800L|
|Controller: Eaton (UL / FM)||FD120-L1|
All petroleum, petrochemical, chemical, military and naval institutes, oil fields of Petro China, Sinopec, CNOOC,
pipeline Bureaus, oil repositories, oil terminals, construction companies, oil refineries, offshore platforms, etc.
Can supply kinds of materials for fire pumps in sea water application including Duplex Stainless Steel, Super
Duplex Stainless Steel and Ni-AI Bronze.
First-Class international technical standards.
CNP NM FIRE is the first member of NFPA from China pump's manufacturers.and won the UL,FM international
fire certification for fire pump products.
First-Class testing and inspection equipment.
UL certification represents the world's highest technical standards of fire certification,but also means that certified
fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify
whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of
NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved
that the company in terms of hardware and software strength,are to meet the strict requirements of UL certification.
|1. Reply within 24 hours.|
|2. High-quality products and the most reasonable price|
|3. Data and chemical technology support.|
|4. Professional team service|
|5. Customiszed production for different package|
