Electric Motor Pump Vertical Turbine Fire Pump With Tornatech Controller And Jockey Pump

China Electric Motor Pump Vertical Turbine Fire Pump With Tornatech Controller And Jockey Pump supplier
Electric Motor Pump Vertical Turbine Fire Pump With Tornatech Controller And Jockey Pump supplier Electric Motor Pump Vertical Turbine Fire Pump With Tornatech Controller And Jockey Pump supplier

Large Image :  Electric Motor Pump Vertical Turbine Fire Pump With Tornatech Controller And Jockey Pump

Product Details:

Place of Origin: China
Brand Name: NM FIRE
Certification: UL /FM/Non-listed
Model Number: Vertical Turbine Fire Pump

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Packing
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Standards: NFPA20, UL, FM, EN12845,CCCF Capacity: 750USGPM
Head: 125PSI L: 3m
Model: 200VTP250-22X3 Controller: Tornatech
High Light:

vertical fire pump

,

vertical turbine centrifugal pump

  • Vertical Turbine Fire Pump electric motor pump UL FM with Tornatech controller and jockey pump set



  • Vertical Turbine Fire Pump Details



Motor Pump Set
Pump:NM FIRE(UL)
Model 200VTP250-22X3 This Electric pump Set include:
1.the pump(air relieve vlave , outlet gauges);
2.Motor;
3.Control System;
4.Test Fee;
5.Main relief valve;
6.Waste cone;
7.Flow meter.
Capacity 750usgpm
Head 125psi
RPM 1760rpm
L 3m
Material
Discharge Head Carbon steel
Column pipe Carbon steel
Guide beaing Teflon
Shaft AISI420
Seal Gland packing
Impeller S.S 304
Suction bell Ductile Cast iron
Diffuser Ductile Cast iron
Motor: XDD(UL)
Model: VHS405TP-4-125X2
  125HP/60HZ /460V/ 3PH
Control Panel:Tornatech(UL/FM)
Model GPY-460V-125HP-3PH-60HZ-A4
Flow meter :GVI (FM)
Model 6"-750-G
Main relief valve :Cla-val (UL/FM)
Model 2050B-4KG1 4"
Waste cone:NM FIRE
Model 4"-6"
Jockey Pump Set
Pump:CNP This Jockey pump set include:
1.Jockey Pump;
2.Control System;
3.20m cables.
Model: SJ5-14
Capacity 20usgpm
Head 88m
Power 2POLE 2.2KW
Control Panel:Tornatech(UL)
Model: JP3-460V-3HP-3PH-60HZ



  • Standard and Range





Standards

NFPA20, UL, FM, EN12845,CCCF
Performance Ranges
UL : Q: 250-5000GPM H:80-300PSI
FM: Q: 250-5000GPM H:80-300PSI
CCCF: Q:15-300L/S H:0.60-2.0Mpa
NFPA20: Q: 250-5000GPM H:80-300PSI

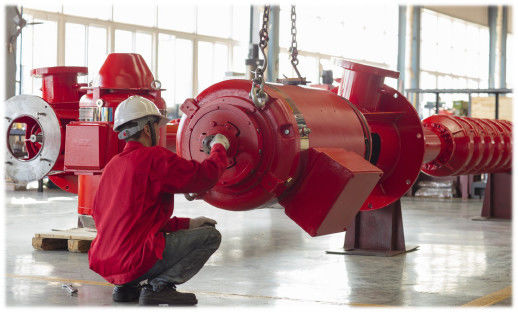

Electric Motor Pump Vertical Turbine Fire Pump With Tornatech Controller And Jockey Pump



  • Vertical Turbine Fire Pump Application:

Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises,offshore platform(Pump material:Discharge head, Column pipe, shaft, impeller, suction bell—SS2205, Seal—Gland packing ,Guide bearing—Thordon) etc.
Electric Motor Pump Vertical Turbine Fire Pump With Tornatech Controller And Jockey Pump

  • Five Advantages of CNP NM FIRE

①The late-mover advantage of products, we R&D better fire products than other Suppliers;



②Have the most complete and all series of fire pump models;



③Have listed diesel engines with self-owned brand--- NM FIRE;



④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services;



⑤Shorter delivery time.

Please contact us if you have any other requirements.

Thanks



  • Product Details

  • VTP_vertical_turbine_parameter_table
NM FIRE Vertical Shaft Turbine UL/FM FIRE PUMP
NO. Pump Model / Outlet Size / Min Submergence Flow Head
(usgpm) (psi) (m)
1 100VTP40~6
Outlet Size 4" Min Submergence
100 40~270 28~190
150 40~263 28-185
200 40~259 28~182
250 40~253 28~178
2 150VTP200~17
Outlet Size 6" Min Submergence
500 40~213 28~150
750 40~182 32~24
500 40~230 28~162
750 45~188 44~32
3 200VTP250~22
Outlet Size 8" Min Submergence
750 55~288 50.8~40
1000 50~267 36~188
750 40~263 28~185
1000 40~249 28~175
4 250VTP400~28
Outlet Size 10" Min Submergence 151cm
1250 41~305 28~214
1500 40~292 28~205
1500 58~285 40~200
2000 63~251 44~176
5 250VTP550~26
Outlet Size 10" Min Submergence
171cm
2000 40~194 28~185
2000 57~266 40~187
2500 61~245 43~172
6 300VTP860~43
Outlet Size 12" Min Submergence
180cm
2500 50~245 35~172
3000 53~235 37~165
7 350VTP860~43
Outlet Size 12" Min Submergence 180cm
2500 74~236 52~166
3000 69~230 48.5~162
3500 73~222 51~156
4000 104~207 73~145
8 350VTP1250~36
Outlet Size 14"
Min Submergence 250cm
3500 48~250 34~176
4000 46~244 33~172
9 400VTP1250~36
Outlet Size 16"
Min Submergence 250cm
4000 61~270 43~190
4500 60~264 42~186
5000 253 178





In addition to the above models, there are many model UL/FM testing in process.

Looking forward to your enquiry.

Electric Motor Pump Vertical Turbine Fire Pump With Tornatech Controller And Jockey Pump

  • FAQ

Q1.Do you have the UL-LISTED Fire Pump Sets?

Yes, We have the UL/FM and NFPA standard Fire Pump Sets.



Q2.I need your motor drive End-suction/Split-casing  fire pump, what information shold I sent to you ?

Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.



Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.



Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price.

For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage  Frequncy and the tank deep.

For the  Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed  and the tank deep.

If you need Jockey Pump or other accessories,please tell us together.





  • Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
