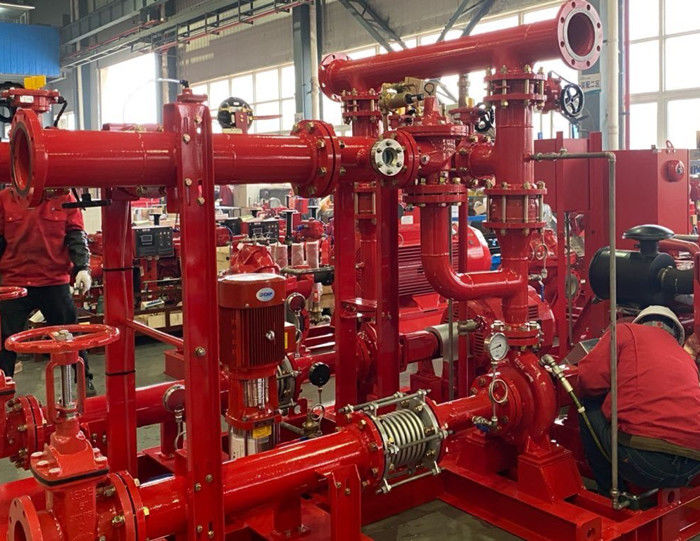

NFPA20 Standard Centrifugal Fire Water Pump Package 750GPM@110PSI

UL / NFPA20 Skid Mounted Fire Pump With Centrifugal End Suction Fire Pump Sets 750GPM @ 110PSI

NM Fire packages are designed to provide trouble free operation, meet or exceed design conditions, and take up as little floor space as possible while still allowing easy access to valves, controllers, meters, etc. We use only time-tested quality components, all of which carry UL/FM listings. Fittings, piping sections, and frame members are powder coated to ensure long service life.

End Suction Pump Series with Hydraulically balanced impeller to extend bearing life. Available in electric motor or diesel engine driven configurations.
Features and Benefits
Top centerline discharge with foot supported casing.
Ease of installation.
Simplifies piping layout.


Parameters:




How it Works:

The end suction centrifugal pump normally contains a single impeller and a spiral like casing. The fluid that is being pumped moves along the impeller’s vanes, which increases the fluid’s velocity. From there the fluid is moved into the spiral like casing, where the high velocity is transformed into high pressure by a diffusion process.
These types of pumps are usually powered by an A.C. electric motor, although some are D.C. motor driven, as well as air driven motors, hydraulic motors, gasoline and diesel engine driven and steam turbine driven. These pumps may be close-coupled, with the impeller directly attached to the driver shaft without a separate coupling between them. Alternatively, they may be mounted on a frame, where the pump has its own bearings and a coupling that separates the motor and the pump.

Performance Ranges:



Applications:
The end suction centrifugal pump is useful in various residential, industrial and commercial applications. Due to the fact that the pumps are highly common and readily available from many suppliers, their prices are usually very attractive.
Standard end suction centrifugal water pumps are normally close coupled and manufactured from standard iron or a variety of plastics. Pumps that are meant for more heavy duty commercial and industrial applications are often mounted on a bedplate with a coupling that separates the motor and the pump. These are usually available in stainless steel and more exotic alloys or plastics for corrosion resistance, while others are manufactured from hardened iron for mining, slurry and dredging applications.


Pump types:
End suction pump, Jockey pump, In-line pump
Configuration types:
1.Electric motor driven fire pump Sets
2.Diesel engine driven fire pump Sets
3.jockey pump Sets


Advantage:

First-Class testing and inspection equipment.
UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.
