|DRIVER::||ENGINE / ELECTRIC MOTOR (50Hz)||SPEED::||2980|

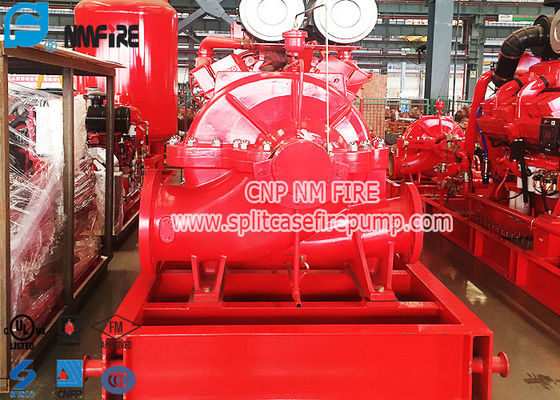

UL Listed 500 Gpm Fire Pump Set , Single Stage Double Suction Centrifugal Pump
Horizontal split case pumps are the most common type of fire pump. These pumps are specifically designed and tested for fire service applications where reliability of performance is of vital importance. Split case pumps are characterized by:
• Easy access to all working parts;
• Rugged construction;
• Liberal water passages;
• Efficient operation.
Split case fire pumps are specified when the source of water is located above the surface of the ground and provides a positive suction pressure to the pump at any performance point.
Single-stage or multistage pumps are available dependent upon discharge pressure requirements. Aurora split case fire pumps are built per the rigid standards of NFPA 20 and are listed by Underwriters Laboratories (UL) and approved by Factory Mutual (FM). Available in a broad range of operating pressures and flows from a minimum of 500 GPM, NM split case pumps can be driven by either an electric motor or diesel engine. NM’s UL-Listed, FM-Approved fire pump packages also include the system controller, with a full range of options and accessories available to complete the NFPA-compliant fire pump package.
Single stage horizontal split case fire pump for firefighting applications. NFPA-20 design. UL Listed and FM Approved. HSC Pumps are engineered for reliable operation upon demand. All fabricated parts are standardized and accurately machined for true alignment, increasing overall durability.
Precision balancing of all rotating components provides mechanical dependability, reliable operation and minimal maintenance. Impellers are constructed with double inlets that practically eliminate end thrust while boosting operating efficiency.ic tests. Operation Limits
Capacity up to 4,000 gpm Head up to 205psi
Applications: Commercial, municipal and residential high-rise buildings, Large industrial premises and storage warehouses, Offshore and remote facilities, Airports, Power stations.
Please note:the fire pump can't be sold individual.it should be match with the driver.
|Before quotation,we need some basic information for selection & supply Scope :|
|1:Parameters including head ,flow, altitude, temperature, voltage, frequency
(A deduction of 3 % from engine horsepower rating at standard SAE conditions shall be made for diesel engines for each 1000ft(305m) altitude above ft.(91.4m) engine horsepower rating as corrected to standard SAE conditions
shall be made for diesel engines for every 10°F(5.6℃)above 77°F(25 ℃)ambient temperature.)
|2. Scope of supply|
|3. Special requirements (Brand requirement/ technical requirements on product function…)|
|4.Listed or Non-listed products ?|
