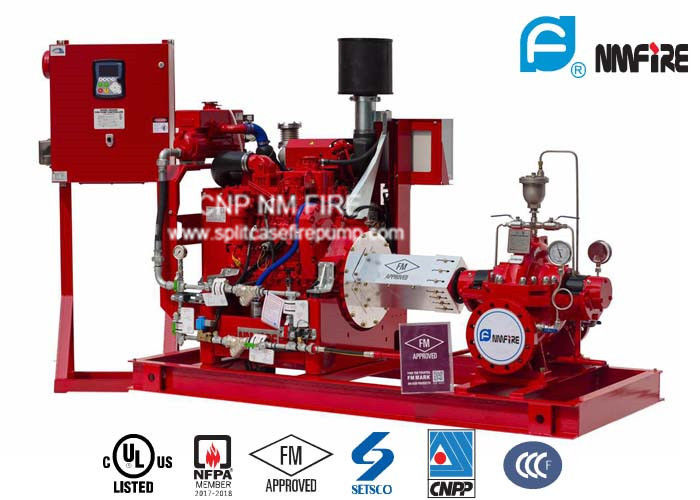

2000GPM@175PSI Diesel Engine Driven Fire Pump 1800RPM NFPA20 Standard
| Place of Origin | China |
|---|---|
| Brand Name | CNP NM FIRE |
| Certification | NFPA20/UL/FM/EN12845/CCCF |
| Model Number | SCF200-150-460 （8x6") |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Export Packing |
| Delivery Time | 30-45 Working Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | UL/FM/NFPA20 | Flow | 2000GPM |
|---|---|---|---|
| RPM | 1800 (60Hz) | Engine | DE MAAS & NM Fire |
| Control Panel | Tornatech (UL/FM) | Head | 175PSI |
| High Light | diesel driven fire pump,diesel powered fire pump |
||
Product Description
2000GPM @ 175PSI Diesel Engine Drive Fire Pump With Centrifugal Split case Fire Pump NFPA20/UL/FM Approval
Parameters:
| HEAD | PUMP MODEL | SPEED | MAX SHAFT POWER | DIESEL ENGINE DRIVER | ||||||||
| PSI | FEET | METER | RPM | HP | KW |
MODEL
(NM&UL) |
HP | KW |
MODEL (DE
MAAS&FM) |
HP | KW | |
| 175 | 404 | 123 | SCF200-150-460 (8x6") |
1800 (60Hz) |
381 | 283.8 | NM6-114 | 255 | 190 | DF15TiH-F | 490 | 366 |
Performance Ranges:
|
UL:
|
Q: 500-4000GPM | H:100-190PSI |
|
FM:
|
Q: 500-4000GPM | H:100-190PSI |
|
CCCF:
|
Q:20-500L/S | H:0.42-2.0Mpa |
|
NFPA20:
|
Q: 300-8000GPM | H:60-300PSI |
The split case pump is available in various designs and manufactured from different materials to suit a wide range of applications. Major components in the pump such as, impellers, casings, wear rings, and shafts can be offered by manufacturers in various materials to suit the fluid hat is being pumped and the site environment conditions.
The pump also comes in a variety of configurations and designs including horizontal, vertical, vertical open shaft and close coupled configurations; with counter clockwise or clockwise rotation design options.
Product Type:
Diesel engine driven fire pump sets with air cooling & water cooling
NFPA20 Package
Advantage:
First-Class testing and inspection equipment.
We are the first manufacturer in the world who have both UL/FM certification for fire pump and the fire-fighting diesel engine, also the only UL Witness laboratory in Asia for fire-fighting pump and fire-fighting diesel engine.
Service:
| 1. To supply high-quality products with reasonable prices in food additive industry. |
| 2. To follow orders and arrange shipping in time, providing complete documents |
| for Customs clearance according to different export policies in different countries. |
