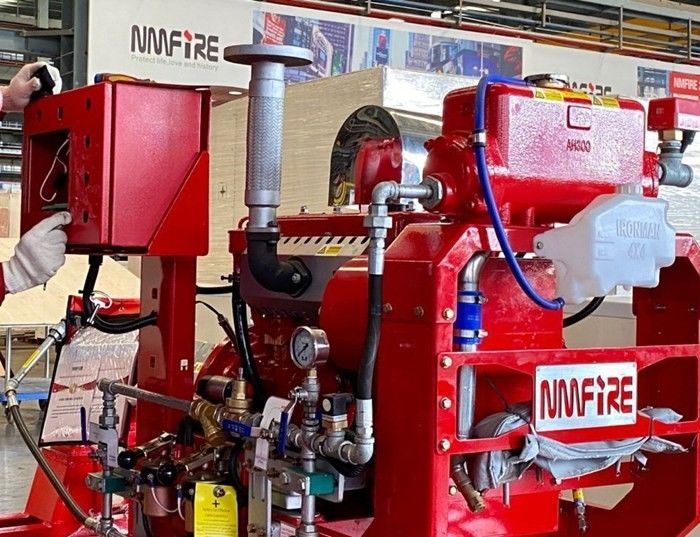

NM Fire 750GPM Horizontal Split Case Diesel Engine Fire Pump

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/ CE
Model Number SCF125-80-250
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 75 days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Flow 1000GPM
Casing: Ductile Cast Iron Engine NM Fire Fire Engine
Control Panel Tornatech (UL/FM) Head 106~118psi
High Light

750GPM Diesel Engine Fire Pump

,

NM Fire Diesel Engine Fire Pump

,

UL horizontal split case pump

Leave a Message
Product Description

NM Fire 750 GPM Diesel Engine Driven Fire Pump Horizontal Split Case





Configurations:



1
Diesel Engine
Pump Set
( Heat Exchanger)
Pump: NM Fire Split Case
Model: SCF125-80-250 UL
Q=750usgpm H=108psi(76m) n=2950rpm
1
Engine: NM FIRE
Model: NM4-105 UL
86HP at 2950rpm
Controller : Tornatech UL/ FM
Model: GPD-24-220-C05
2 Motor Pump Set Pump: NM Fire Split Case
Model: SCF125-80-250 UL
Q=750usgpm H=108psi(76m) n=2950rpm
1
Motor: Techtop UL
Model: F-TDC 326TS60U2B
60HP/50HZ /380V/ 3PH
Control Panel: Tornatech UL / FM
Model: GPY-380V/60hp/3ph/50hz
3 Jockey Pump Set Pump: CNP Model: CDL2-11 non-listed Q=7.5gpm H=83m 2Pole 1.4KW 1
Control Panel: Tornatech UL
Model: JP3-380V/2HP/3PH/50HZ


Application:



The split case pump is available in various designs and manufactured from different materials to suit a wide range of applications. Major components in the pump such as, impellers, casings, wear rings, and shafts can be offered by manufacturers in various materials to suit the fluid hat is being pumped and the site environment conditions.



Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, etc.



Product Performance Curve:



NM Fire 750GPM Horizontal Split Case Diesel Engine Fire Pump 0





Advantage:



First-Class international technical standards



NM Fire is the first member of NFPA from Chinese pump manufacturers .



We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well,also the first company in the world who was authorized by UL CCIC as witness testing center for both fire pumps and fire fighting engines.



NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the

strict requirements of UL certification.



Service:



Pre-service:



1. Any inquiries will be replied within 24 hours.

2. Dedicated to high quality, stable supply and considerate service.



Sale service:

Provide full set of documents as customer’s requirements.



After-Sale Service:

Customiszed production for different package



FAQ:



1. To supply high-quality products with reasonable prices in food additive industry.
2. To follow orders and arrange shipping in time, providing complete documents
for Customs clearance according to different export policies in different countries.



NM Fire 750GPM Horizontal Split Case Diesel Engine Fire Pump 1
