750 GPM End Suction Centrifugal Pump Set / 142 PSI Eaton Controller Fire Pump Set

China 750 GPM End Suction Centrifugal Pump Set / 142 PSI Eaton Controller Fire Pump Set supplier

Large Image :  750 GPM End Suction Centrifugal Pump Set / 142 PSI Eaton Controller Fire Pump Set

Product Details:

Place of Origin: China
Brand Name: NM FIRE
Certification: UL /FM/Non-listed
Model Number: End suction

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Packing
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Standards: NFPA20, UL, FM Non-listed UL Performance Ranges: Q: 100-750GPM H:70-152PSI
FM Performance Ranges: Q: 100-750GPM H:70-152PSI Capacityt: 750GPM
Controller: Eaton(UL/FM) Motor: Techtop(UL)

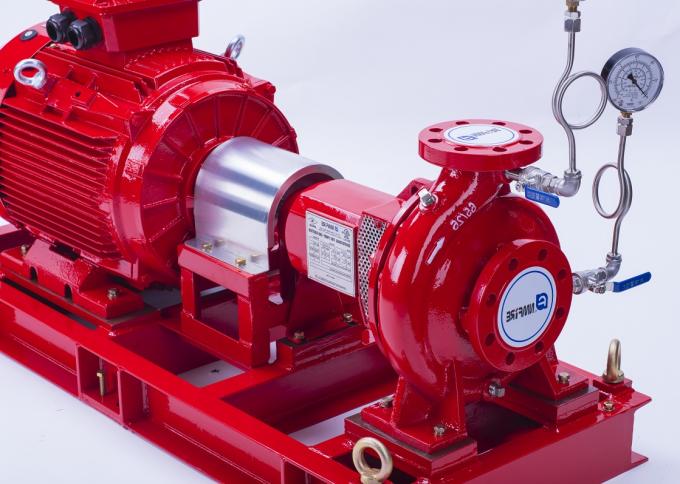

  • End Suction Centrifugal Pump Set 750GPM 142PSI Eaton Controller Fire Pump set centrifugal fire pump UL FM approved

    Product Details



Motor Pump Set UL LISTED
NM Fire End Suction Pump
Model ESFESF80/20(UL/FM) This Electric pump Set includes the pump(air relieve vlave , inlet & outlet gauges) , Motor, Control System,Commonbase .




Please contact me if you need other accessories.

Capacity 750GPM
Head 142PSI
RPM 3550rpm
Material:
Casing Ductile Cast iron
Impeller Bronze
Shaft SS420
Seal Gland packing
Wear ring Bronze
Bearing SKF
Engine: TECHTOP&UL
Model: TDC 286TS40U2B
Controller : Eaton(UL/FM)



750 GPM End Suction Centrifugal Pump Set / 142 PSI Eaton Controller Fire Pump Set

Standards

NFPA20, UL, FM, EN12845,CCCF

Performance Ranges

UL : Q: 100-750GPM H:70-152PSI

FM: Q: 100-750GPM H:70-152PSI

CCCF: Q:15-45L/S H:0.6-0.9Mpa

NFPA20: Q: 100-3000GPM H:40-200PSI

750 GPM End Suction Centrifugal Pump Set / 142 PSI Eaton Controller Fire Pump Set

NMFIRE is the first company in the world who has UL / FM fire pump and UL listed diesel engine.
  • Application:

Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, etc.


Please note :the pump will be not sold individual,it must be match with engine or electric motor driver.





  • Five Advantages of CNP NM FIRE


①The late-mover advantage of products, we R&D better fire products than other Suppliers;

②Have the most complete and all series of fire pump models;

③Have listed diesel engines with self-owned brand--- NM FIRE;

④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services;

⑤Shorter delivery time.
750 GPM End Suction Centrifugal Pump Set / 142 PSI Eaton Controller Fire Pump Set
  • FAQ

Q1.Do you have the UL-LISTED Fire Pump Sets?

Yes, We have the UL/FM and NFPA standard Fire Pump Sets.

Q2.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?

Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.

Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.

Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price.

For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.

For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.

If you need Jockey Pump or other accessories,please tell us together.

750 GPM End Suction Centrifugal Pump Set / 142 PSI Eaton Controller Fire Pump Set
  • Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.



750 GPM End Suction Centrifugal Pump Set / 142 PSI Eaton Controller Fire Pump Set
