UL FM NFPA 20 End Suction Fire Pump For Schools,Office Buildings 45.4M3/H 98 m fire fighting system

Place of Origin China
Brand Name NM FIRE
Certification UL /FM/Non-listed
Model Number End suction
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 60 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standards NFPA20, UL, FM Non-listed UL Performance Ranges Q: 100-750GPM H:70-152PSI
FM Performance Ranges Q: 100-750GPM H:70-152PSI Capacityt 45.4M3/H
Controller Tornatech (UL/FM) Motor Techtop(UL)
High Light

single stage end suction pump

,

single stage fire pump

,

Schools End Suction Fire Pump

Leave a Message
Product Description
  • End Suction Centrifugal Pump Set UL FM NFPA20 Fire Pump Diesel engine fire pump 45.4M3/H 98m

    Product Details

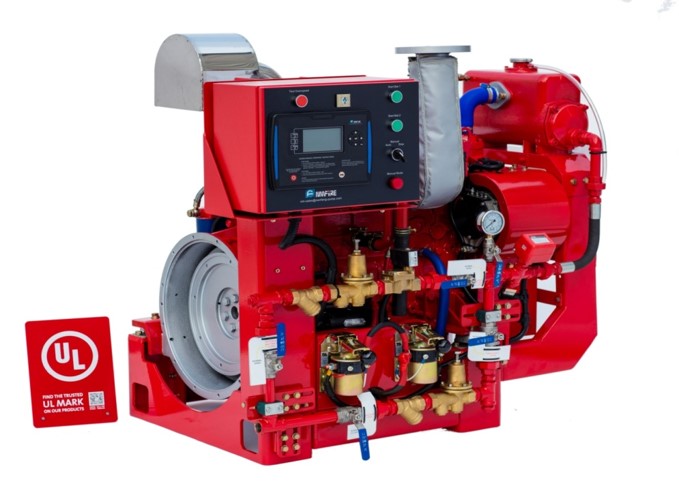

Diesel Engine Pump Set( Heat Exchanger) UL LISTED

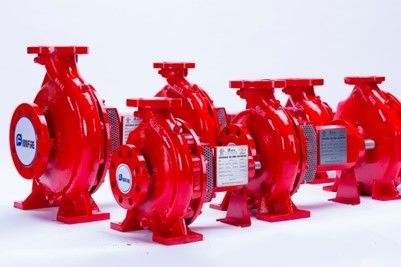

NM Fire End Suction Pump
Model ESF50/26(UL) This Diesel Engine Group includes the pump(inlet & outlet gauges) Diesel Engine, Commonbase, Silencer, ,Batteries,Flexible exhaust connector, Control System, Coupling (non-listed), Cooling System.




Please contact me if you need Fuel tank, Main relief valve,Waste corn or other accessories.

Capacity 45.4M3/H
Head 98m
RPM 2980rpm
Material:
Casing Ductile Cast iron
Impeller Bronze
Shaft SS420
Seal Gland packing
Wear ring Bronze
Bearing SKF
Engine: NM FIRE (UL)
Model: NM4-90
Controller : Tornatech (UL/FM)
Model: GPD-24-120/220

UL FM NFPA 20 End Suction Fire Pump For Schools,Office Buildings 45.4M3/H  98 m fire fighting system 0

UL FM NFPA 20 End Suction Fire Pump For Schools,Office Buildings 45.4M3/H  98 m fire fighting system 1

Standards

NFPA20, UL, FM, EN12845,CCCF

Performance Ranges

UL : Q: 100-750GPM H:70-152PSI

FM: Q: 100-750GPM H:70-152PSI

CCCF: Q:15-45L/S H:0.6-0.9Mpa

NFPA20: Q: 100-3000GPM H:40-200PSI



UL FM NFPA 20 End Suction Fire Pump For Schools,Office Buildings 45.4M3/H  98 m fire fighting system 2

NMFIRE is the first company in the world who has UL / FM fire pump and UL listed diesel engine.
  • Application:


Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, etc.


Please note :the pump will be not sold individual,it must be match with engine or electric motor driver.







 UL FM NFPA 20 End Suction Fire Pump For Schools,Office Buildings 45.4M3/H  98 m fire fighting system 3
  • Five Advantages of CNP NM FIRE


①The late-mover advantage of products, we R&D better fire products than other Suppliers;

②Have the most complete and all series of fire pump models;

③Have listed diesel engines with self-owned brand--- NM FIRE;

④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services;

⑤Shorter delivery time.

  • FAQ


Q1.Do you have the UL-LISTED Fire Pump Sets?

Yes, We have the UL/FM and NFPA standard Fire Pump Sets.

Q2.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?

Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.

Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.

Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price.

For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.

For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.

If you need Jockey Pump or other accessories,please tell us together.


UL FM NFPA 20 End Suction Fire Pump For Schools,Office Buildings 45.4M3/H  98 m fire fighting system 4
  • Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.



UL FM NFPA 20 End Suction Fire Pump For Schools,Office Buildings 45.4M3/H  98 m fire fighting system 5
