450GPM @ 125PSI Skid Mounted Fire Pump With Centrifugal End Suction Fire Pump Sets

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/CCCF
Model Number ESF65/26 (2.5"x2")
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 30-45 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Flow 450GPM
Pump CNP NM FIRE Casing: Ductile Cast Iron
Head 125PSI Color Red
High Light

fire pump skid package

,

diesel engine pump set

Leave a Message
Product Description

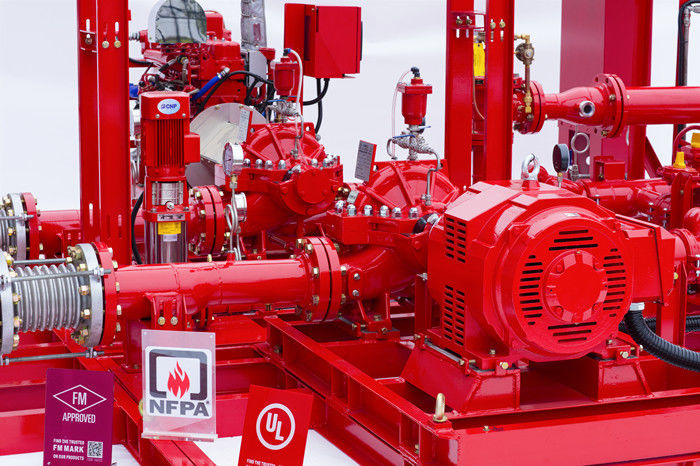

450GPM @ 125PSI Skid Mounted Fire Pump With Centrifugal End Suction Fire Pump Sets UL / NFPA20


NM designs and manufactures custom and pre-engineered skid package fire pump systems. These systems are factory assembled and tested, leaving only pipe connections, power connections and structural base grouting to be completed on site. All fire pump packages built to NFPA 20 standards with UL listed / FM approved components.


This all-in-one solution objetive is to eliminate the complexity and problems of on site assembly. We ensure all package skids meet inspection requirements of local National Building Code, NFPA 20 Standards and Insurance companies.

Fire pump packages also reduce the cost of assembly, quick installation means less work and time spent on installation, and your fire pump system can be fully operational very quickly. This fire protection pumping solution that NM provides is a superior quality fire system with reliability and inbuilt safety.



Advantages:
Easy to install fire pump set at site.
Easy to commission.
Reduced installation time.
Pre-wired electrical connections.
Less space requirement.
All (pumps, drivers & controllers) on single base

Security:
Single manufacturing source.
Single unit responsibility
100% system operational integrity.
100% secure system.
Convenience in procuring spare parts .
All major components listed products.
Complying with NFPA 20

Testing Facility:
Individual components test facility.
Pump performance test.
Pump hydrostatic test.
Complete package test with automatic operation.
String test.
Driver load test.
Simulating field test.


Parameters:


HEADPUMP MODELSPEEDMAX SHAFT POWERMOTOR DRIVERDIESEL ENGINE DRIVER
PSIFEETMETERRPMHPKW

MODEL
(TECHTOP&UL)

HPKW

MODEL
(NM&UL)

HPKWMODEL(DE MAAS&FM)HPKW
12528888ESF65/26
(2.5"x2"
2980
(50Hz)
6850.7T250M1-2
(IEC/TEFC)
7555NM4-1058664IF05AH-F8160



Pump types:
End suction pump, Jockey pump, In-line pump

Configuration types:
1.Electric motor driven fire pump Sets
2.Diesel engine driven fire pump Sets
3.jockey pump Sets

Performance Ranges:



UL:


 Q: 100-750GPM H:100-145PSI


FM:


 Q: 100-750GPM H:100-145PSI


CCCF:


 Q:5-150L/S H:0.40-1.6Mpa


NFPA20:


 Q: 100-2250GPM H:60-230PSI




Advantage:


  • We are the first member of NFPA among Chinese pump manufacturers. The production of our fire pump groups is strictly in accordance with NFPA20.
  • We are the first manufacturer in the world who have both UL/FM certification for fire pump and the fire-fighting diesel engine, also the only UL Witness laboratory in Asia for fire-fighting pump and fire-fighting diesel engine.
  • We have applied dozens of patents.
  • We have young team, top experts.


Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
4. Professional team service
5. Customiszed production for different package
6. No delay on shipment
