NFPA20 Standard End Suction Fire Pump 250GPM@100PSI Ductile Cast Iron Casing

China NFPA20 Standard End Suction Fire Pump 250GPM@100PSI Ductile Cast Iron Casing supplier
NFPA20 Standard End Suction Fire Pump 250GPM@100PSI Ductile Cast Iron Casing supplier NFPA20 Standard End Suction Fire Pump 250GPM@100PSI Ductile Cast Iron Casing supplier

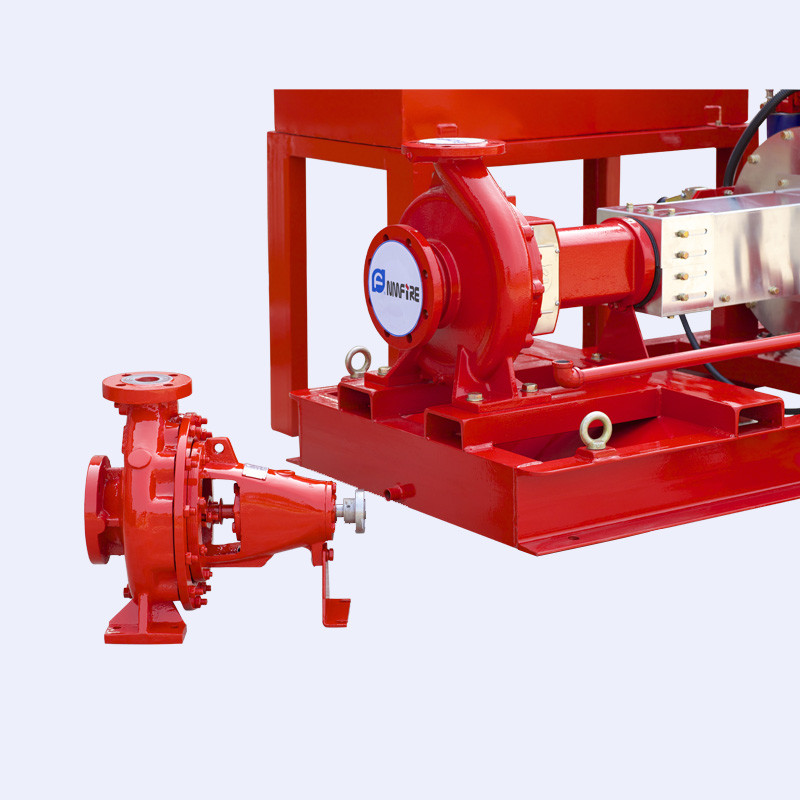

Large Image :  NFPA20 Standard End Suction Fire Pump 250GPM@100PSI Ductile Cast Iron Casing

Product Details:

Place of Origin: China
Brand Name: CNP NM FIRE
Certification: NFPA20/UL/FM/EN12845/CCCF
Model Number: ESF50/26 (2.5"x2")

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Packing
Delivery Time: 30-45 Working Days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Certification:: UL/FM/NFPA20 Flow:: 250GPM
Pump:: CNP NM FIRE Casing:: Ductile Cast Iron
Impeller:: Bronze Color: Red

NFPA20 Accordance 250GPM @ 100PSI Centrifugal End Suction Pumps By UL Listed and FM Approved



End suction centrifugal pumps get their name from the pathway the water takes to enter the pump. Typically the water enters one side of the impeller, and on horizontal end suction pumps, this appears to enter “the end” of the pump. Unlike the HSC the suction pipe and motor or engine are all parallel, eliminating the concern about pump rotation or orientation in the mechanical room. Since water is entering one side of the impeller, you lose the ability to have bearings on both sides of the impeller. Bearing support will be either from the motor itself, or from the pump power frame. This prevents the use of this type of pump on large water flow applications.



Parameters:



HEAD PUMP MODEL SPEED MAX SHAFT POWER
PSI FEET METER RPM HP KW
100 231 70 ESF50/26
(2.5"x2")
2980
(50Hz)
29 21.6



NFPA20, UL, FM, EN12845,CCCF



Application:



Industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;
Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;



Performance Ranges:





UL:



 Q: 100-750GPM  H:100-145PSI



FM:



 Q: 100-750GPM  H:100-145PSI



CCCF:



 Q:5-150L/S  H:0.40-1.6Mpa



NFPA20:



 Q: 100-2250GPM  H:60-230PSI





Product Type:



End Suction Fire Pump



NFPA20 Package





Advantage:



First-Class international technical standards



NM Fire is the first member of NFPA from Chinese pump manufacturers .



The production of fire pump groups is strictly in accordance with NFPA20, production process and performance testing also meet the requirement of ISO9001, some kinds of products have got APSAD(France), UL , FM and CCCF certificates.



We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well,also the first company in the world who was authorized by UL CCIC as witness testing center for both fire pumps and fire fighting engines.







First-Class testing and inspection equipment.



UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.



NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the

strict requirements of UL certification.
