UL FM Split Case Centrifugal Pump 750GPM 196PSI For Fire Fighting

Place of Origin China
Brand Name CNP NM FIRE
Certification UL /FM
Model Number SCF125-100-330x2(UL/FM)
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 60 Days
Payment Terms L/C, T/T
Product Details
Engine NM&UL Capacity 750GPM
Head 296PSI RPM 2950
Casing Ductile Cast Iron Impeller SS304
Pressure High Pressure ,Low Pressure Power Electric , Diesel
High Light

Split Case Centrifugal Pump 750GPM

,

Split Case Centrifugal Pump 196PSI

,

UL FM Fire Fighting Pumps

Leave a Message
Product Description
  • NMFIRE SCF125-100-330x2 Split Case Centrifugal Pump Fire Fighting Water Pump 750G PM 196 PSI  Tornatech Controller

    Product Details

You can leave me a message about the flow, head, and other information about the project, I will recommend the most suitable pump set for you. Looking forward to your message.
NMFIRE proven pumping systems meet changing and demanding conditions. No matter the pump type, size or system configuration, these is a sentinel solution to meet your needs.

The following is a split case diesel pump set suitable for 750G PM 196 PSI, and the fuel tank capacity meets the requirements of NFPA20.






Diesel Engine
Pump Set
( Heat Exchanger)
Pump: NM FIRE
Model: SCF125-100-330x2(UL/FM)
Q= 750usgpm H=296psi n=2950 rpm

Material:
Casing---Ductile Cast iron
Impeller---SS304
Shaft--- AISI 4340
Shaft sleeve---SS304
Seal------ Gland packing
Wear ring----Bronze
Bearing---SKF
This Diesel Engine Group include:
1. the pump(air relieve valve , inlet & outlet gauges);
2. Diesel Engine;
3. Commonbase;
4. Silencer;
5. Flexible exhaust connector;
6. Coupling;
7. Cooling System;
8. Control System;
9. Fuel tank;
10. Flowmeter;
11. Main relief valve;
12. Waste cone;
13. Test Fee.

Batteries Exclude due to china customs restrictions.
Engine: NM FIRE(UL)
Model: NM6-110D
200kw at 2900rpm
Fuel tank:NM FIRE(NFPA 20 Compliant-non-approved)
Model: NMTY-YX-1200L-00-01
Single wall
Controller : Tornatech(UL/FM)
Model: GPD-24-120/220
Flowmeter (Grooved pipe)(FM)
Model: 5"-750-G
Main relief valve: Cla-Val (UL/FM)
Model: 2050B-4KG1 4" 100-300psi
Waste cone: NM FIRE
Model: 4"-6"

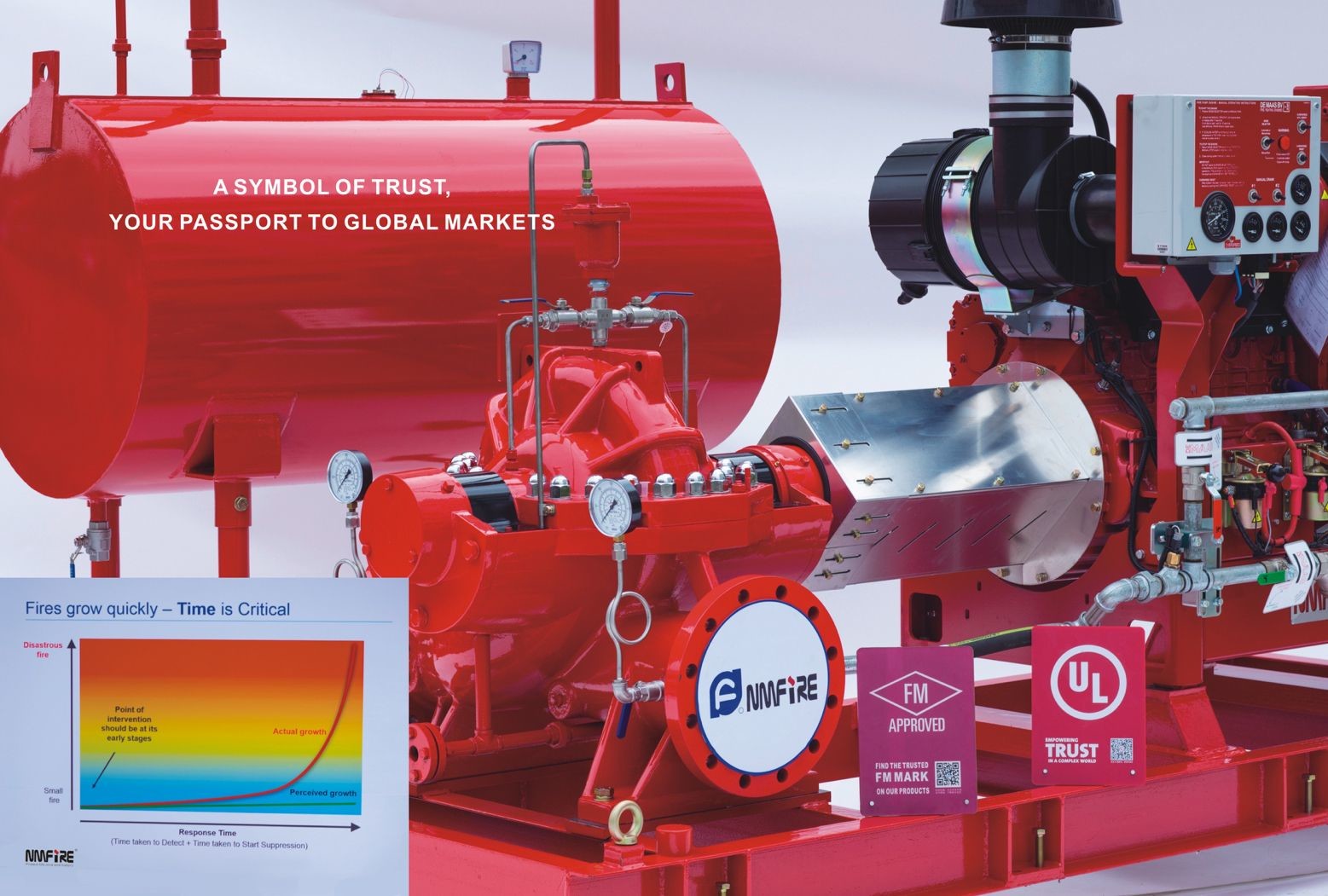

UL FM Split Case Centrifugal Pump 750GPM 196PSI For Fire Fighting 0





  • NMFIRE

NMFIRE Factory-Built Containerized Pump Rooms combine a complete fire pump system, suction and discharge piping, electrical and exhaust components, all housed in a specially designed container. Pump Rooms are designed, built, and tested in a controlled ISO9001:2015 factory environment and shipped to the job site ready for immediate installation. The system piping and electrical connections are ready for immediate hook-up which significantly reduces on-site labor and shortens construction project timelines.

Value Added Systems
• 3D design built in an NFAP20 engineering environment with the highest quality
Standards
• All main components are UL/FM Listed and Approved products
• Complete system is pressure tested before shipment to eliminate on-site leaks
• All interior piping and electrical connections are complete
• Factory assembly and testing eliminates the need for on-site assembly
• Enclosure floor is coated
• Superstructure design supports the system piping, exhaust piping, and electrical components from the roof, allowing for more open floor space
• Wall insulation reduces environmental noise
• Includes all auxiliary systems prescribed by NFPA20 including:
• Heating • Lighting • Sprinklers • Ventilation • Drainage

  • Application:



All petroleum, petrochemical, chemical, military and naval institutes, oil fields of Petro China, Sinopec, CNOOC, pipelines Bureaus, oil repositories, oil terminals, construction companies, oil refineries, offshore platforms, etc.
Fire-fighting Engineering Companies, airports, highway tunnels, hotels, hospitals, supermarkets, office buildings, national grain storages, thermal power plants, shipyards, paper mills, subway stations, railway stations, etc.
Steel plants, residential regions, industrial and mining enterprises, house building materials supermarkets, etc.



UL FM Split Case Centrifugal Pump 750GPM 196PSI For Fire Fighting 1

  • Five Advantages of CNP NM FIRE

  • ①The late-mover advantage of products, we R&D better fire products than other Suppliers;②Have the most complete and all series of fire pump models;③ Have listed diesel engines with the self-owned brand--- NM FIRE;④ Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services;⑤ Shorter delivery time.



UL FM Split Case Centrifugal Pump 750GPM 196PSI For Fire Fighting 2






  • FAQ



Q1. Do you have the UL-LISTED Fire Pump Sets?
Yes, We have the UL/FM and NFPA standard Fire Pump Sets.
Q2. I need your motor drive End-suction/Split-casing fire pump, what information should I send to you?
Sir/Madam, you can provide the Capacity, Heed, Voltage, and Frequency, we will make the quotation for you, If you need a Jockey Pump or other accessories, please tell us together.
Q3. If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information should I send to you?
You can send the Capacity Heed, Temperature, and Altitude (temperature and altitude will affect the performance of diesel engines). If you need a Jockey Pump or other accessories, please tell us the Voltage and Frequency or accessories together.
Q4. I need the UL/FM Vertical Turbine Fire Pump Set, please sent me the price.
For the motor Diver Vertical Turbine Fire Pump Set: you should give us the Capacity, Heed, Voltage Frequency, and the tank deep.For the Diesel Engine Drive Vertical Turbine Fire Pump Set: you should give us the Capacity, Heed, and the tank deep. If you need a Jockey Pump or other accessories, please tell us together.
