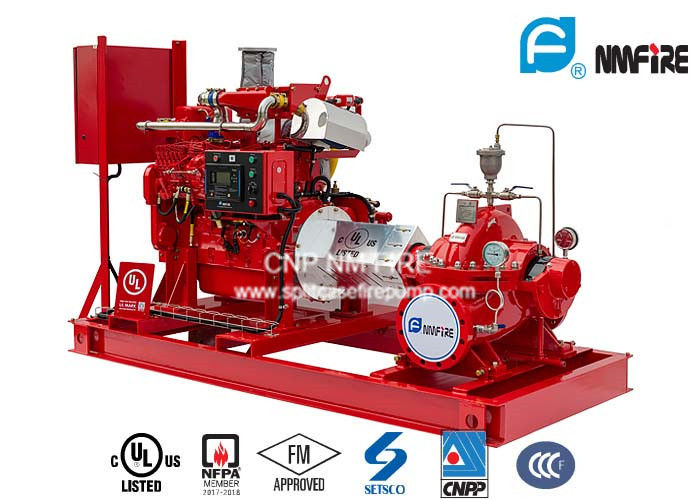

Centrifugal SDiesel Engine Driven Fire Pump 500GPM@265PSI For Oil Repositories

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/CCCF
Model Number SCF125-80-350 (5x3")
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 30-45 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Flow 500GPM
RPM 2980 (50Hz) Engine DE MAAS & NM Fire
Control Panel Tornatech (UL/FM) Head 265PSI
High Light

diesel engine fire pump

,

diesel powered fire pump

Leave a Message
Product Description

Multistage NFPA20/UL/FM Approval Diesel Engine Drive Fire Pump With Centrifugal Split case Fire Pump 500GPM @ 265PSI



Parameters:



HEAD PUMP MODEL SPEED MAX SHAFT POWER DIESEL ENGINE DRIVER
PSI FEET METER RPM HP KW

MODEL



(NM&UL)

HP KW

MODEL (DE



MAAS&FM)

HP KW
265 611 186 SCF125-80-350
(5x3")
2980
(50Hz)
230 171.4 NM6-104 240 179 IF07ATiH-F 240 179



Performance Ranges:





UL:



 Q: 500-4000GPM  H:100-190PSI



FM:



 Q: 500-4000GPM  H:100-190PSI



CCCF:



 Q:20-500L/S  H:0.42-2.0Mpa



NFPA20:



 Q: 300-8000GPM  H:60-300PSI





Split Case Pump



A split case pump is a type of centrifugal pump in which the pump’s casing is split into two separate chambers. This type of pump is different from an inline pump or an end suction pump in which the discharge nozzle and the suction nozzle are both included in one chamber.

There are two main types of the split case pump. When the casing is split along a vertical plane with respect to the impeller, it is referred to as a vertical split case pump. When the casing is split along a horizontal plane, it is referred to as a horizontal split case pump. The later type of casing design is more economical in applications that require significantly higher flows, and its impeller can be supported using bearings on two sides, which is an advantage for larger, higher flow pumps.



Product Type:



Diesel engine driven fire pump sets with air cooling & water cooling



NFPA20 Package





Advantage:



  • We are the first member of NFPA among Chinese pump manufacturers. The production of our fire pump groups is strictly in accordance with NFPA20.
  • We have applied dozens of patents.
  • We have young team, top experts.





Service:



1. To supply high-quality products with reasonable prices in food additive industry.
2. To follow orders and arrange shipping in time, providing complete documents
for Customs clearance according to different export policies in different countries.
