UL / FM Fire Fighting Pump Set / Diesel Engine Driven Fire Fighting Pump 227M3/H 69m

Place of Origin China
Brand Name CNP NM FIRE
Certification UL /FM
Model Number SCF150-125-250(UL/FM)
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 60 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Engine NM&UL Capacity 227M3/H
Controller Tornatech (UL/FM) RPM 2980
Casing Ductile Cast Iron Impeller SS304
High Light

diesel driven fire pump

,

diesel powered fire pump

Leave a Message
Product Description
  • Fire Fighting Pump Set NM Fire 227M3/H 69m diesel engine fire pump UL FM NFPA20

    Product Details

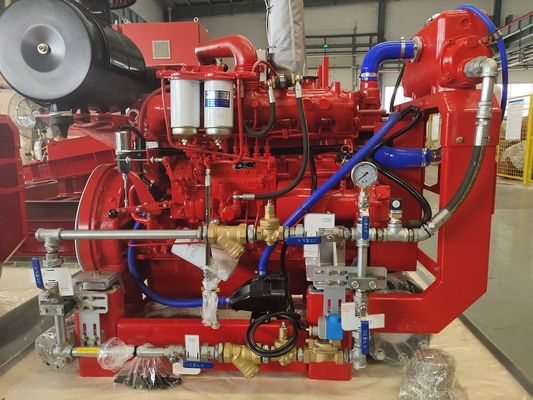

Diesel Engine Pump Set( Heat Exchanger)
NM Fire Split Case Pump
Model SCF150-125-250(UL/FM) This Diesel Engine Group includes the pump(air relieve vlave , inlet & outlet gauges) Diesel Engine, Commonbase, Flexible exhaust connector, Control System, Battery, Silencer, Coupling (non-listed), Cooling System.


Please contact me if you need Fuel tank, Main relief valve,Waste corn or other accessories.
Capacity 227M3/H
Head 69m
RPM 2980rpm
Material:
Casing Ductile Cast iron
Impeller SS304
Shaft AISI 4340
Shaft sleeve SS304
Seal Gland packing
Wear ring Bronze
Bearing SKF
Engine: NM&UL
Model: NM4-105
Controller : Tornatech (UL/FM)
Model: GPD-24-220/240







UL / FM Fire Fighting Pump Set / Diesel Engine Driven Fire Fighting Pump 227M3/H 69m 0



  • Application:


All petroleum, petrochemical ,chemical, military and naval institutes, oil fields of Petro China, Sinopec, CNOOC, pipelines Bureaus, oil repositories, oil terminals, construction companies, oil refineries, offshore platforms, etc.

Fire-fighting Engineering Companies,airports,highway tunnels,hotels,hospitals,supermarkets,office buildings, national grain storages, thermal power plants, shipyards,paper mills, subway stations,railway stations, etc.

Steel plants, residential regions,industrial and mining enterprises,house building materials supermarkets,etc.

UL / FM Fire Fighting Pump Set / Diesel Engine Driven Fire Fighting Pump 227M3/H 69m 1

  • Five Advantages of CNP NM FIRE

  •

    ①The late-mover advantage of products, we R&D better fire products than other Suppliers;


    ②Have the most complete and all series of fire pump models;


    ③Have listed diesel engines with self-owned brand--- NM FIRE;


    ④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services;


    ⑤Shorter delivery time.





UL / FM Fire Fighting Pump Set / Diesel Engine Driven Fire Fighting Pump 227M3/H 69m 2







UL / FM Fire Fighting Pump Set / Diesel Engine Driven Fire Fighting Pump 227M3/H 69m 3

  • FAQ





Q1.Do you have the UL-LISTED Fire Pump Sets?

Yes, We have the UL/FM and NFPA standard Fire Pump Sets.


Q2.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?

Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.


Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.


Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price.

For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.

For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.

If you need Jockey Pump or other accessories,please tell us together.

  • Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.

UL / FM Fire Fighting Pump Set / Diesel Engine Driven Fire Fighting Pump 227M3/H 69m 4
