High Speed Split Case Fire Pump / Cast Iron Diesel Powered Fire Pump

China High Speed Split Case Fire Pump / Cast Iron Diesel Powered Fire Pump supplier

Large Image :  High Speed Split Case Fire Pump / Cast Iron Diesel Powered Fire Pump

Product Details:

Place of Origin: China
Brand Name: CNP NM FIRE
Certification: UL /FM
Model Number: SCF150-125-250 (UL/FM)

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Packing
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Engine: DE MAAS&FM Driving: Diesel Engine Driver
Controller: Eaton (UL/FM) RPM: 2980
Color: Red Casing: Ductile Cast Iron

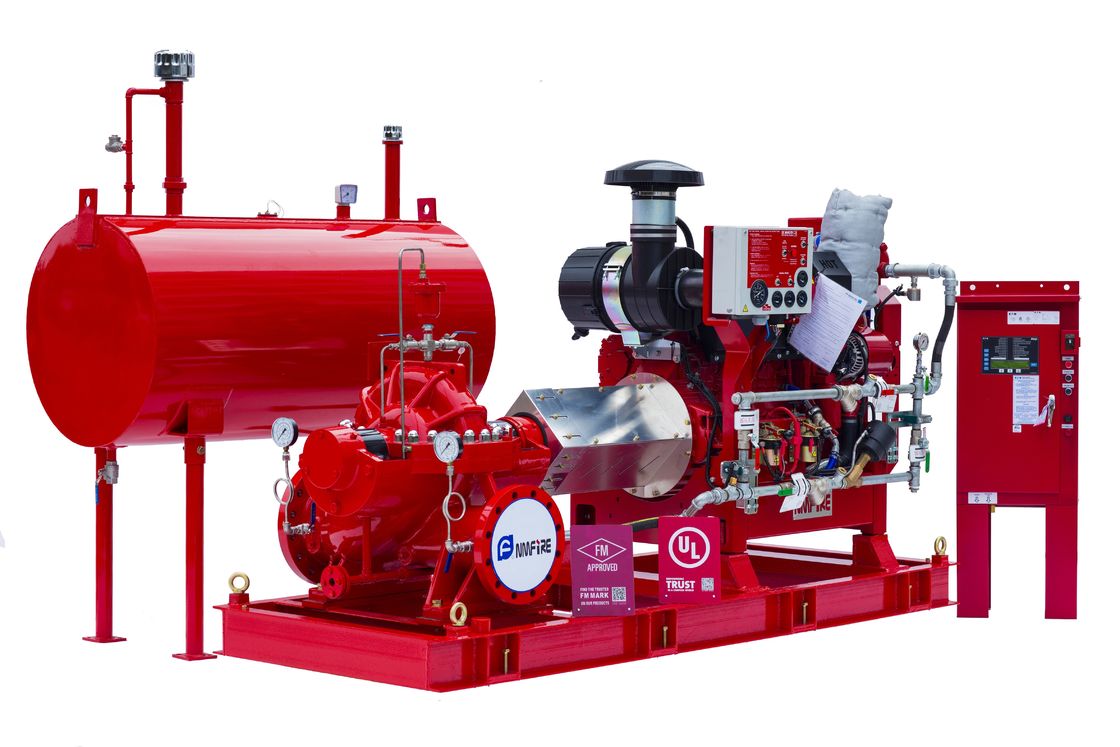

  • 1000GOM150PSI Ul/FM Split casing Fire fighting Diesel Engine Pump Set
  • Product Details
1
Diesel Engine
Pump Set
( Heat Exchanger)
Pump: NM Fire Split Case
Model: SCF150-125-250 (UL/FM)
Q=1000usgpm H=150psi n=2980rpm
Material:
Casing---Ductile Cast iron
Impeller---SS304
Shaft--- AISI 4340
Shaft sleeve---SS304
Seal------ Gland packing
Wear ring----Bronze
Bearing---SKF
Engine: DE MAAS&FM
Model: NM6-102B
114kw at 2980rpm
Controller : Eaton (UL/FM)
Model: FD120-L1
2Jockey Pump SetPump: NM FIRE(Non-listed)
Model: CDL3-22
Q=10gpm H=160psi 2POLE 2.2kw
Control Panel: NM FIRE
Model:NM.EMJ.S1-C-L2-N2



High Speed Split Case Fire Pump / Cast Iron Diesel Powered Fire Pump

  • Application:


Industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;
Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;



Please note :the pump will be not sold individual,it must be match with engine or electric motor driver.

Please contact us if you have any other requirements.
Thanks

  • CERTIFICATE



High Speed Split Case Fire Pump / Cast Iron Diesel Powered Fire Pump





  • History of CNP and NM Fire:


High Speed Split Case Fire Pump / Cast Iron Diesel Powered Fire Pump

CNP was founded more than 25 years,At the beginning, CNP focused on the research and development of stamping and welding stainless steel centrifugal pumps.

Now CNP is the second largest manufacturer on the stainless steel centrifugal pump in the world.

CNP Headquarter :300,000 m2
Over 30 Subsidiaries
More than 5000 staffs





The subsidiary corporations is as follows:

Manufacturing
Environmental protection
•NANFANG PUMP INDUSTRY CO., LTD.
•HANGZHOU NANBENG ENERGY-SAVING TECHNOLOGY Co. Ltd
•HUZHOU NANFENG MACHINARY MANUFACTURING Co. Ltd
•CNP CHANGSHA Co., Ltd.
•CNP NM FIRE FIGHTING SYSTEM CO.,LTD
•HANGZHOU CNP-TSURUMI PUMP CO.,LTD
•HANGZHOU HOWELL FLOW Co., Ltd.
•NANFANG INDUSTRY PTE. LTD.
•TIGERFLOW SYSTEM LLC
JINSHAN ENVIROMENTPROTECTION SCIENCE and TECHNOLOGY CO.,LTD
BEIJING ZHONGZIHUAYU ENVIRONMENTAL TECHNOLOGY CO.,LTD


CNP and NM Fire set up a cooperative enterprise in October,2013. introducing some experienced talents with international first-class technical level. The designation and production of the products are strictly consistent with requirements of international certificates,for changing the backward conditions in domestic market.

NM Fire is the first member of NFPA from Chinese pump manufacturers. In March of 2017, it became the first enterprise of China to have both UL & FM two international certification of fire pumps. In September the same year, NM Fire again became the China’s first enterprise to have UL certificate for diesel fire engine. Currently, only 3 or 4 companies in the world have obtained fire engine certification. NM Fire is also the first company in the world to have both UL Listed fire pumps and fire engines. This series of achievements will completely break the long-term monopoly situation of fire products by European and American brand, which speed up the pace of Chinese enterprises to go overseas.
High Speed Split Case Fire Pump / Cast Iron Diesel Powered Fire Pump

As the first Chinese member of NFPA, NM Fire has a strong technical team with more than 20 years’ global fire equipment R & D experience, including a number of foreign engineers and experts. NM Fire became the first company in the world to have both UL Listed fire pumps and fire engines, which consisted of the NM Fire Team’s 5 years’ hard work and huge investment by enterprise.
This series of historical breakthrough results play a very important role in enhancing the technical level of China’s fire industry and effectively protect national life and property. This is also the primary goal we pursue.


  • Product Range

High Speed Split Case Fire Pump / Cast Iron Diesel Powered Fire Pump

High Speed Split Case Fire Pump / Cast Iron Diesel Powered Fire Pump



In addition to the above models, there are many model UL/FM testing in process.
Looking forward to your enquiry.



Q1.Do you have the UL-LISTED Fire Pump Sets?Yes, We have the UL/FM and NFPA standard Fire Pump Sets.Q2.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price.For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.If you need Jockey Pump or other accessories,please tell us together.
  • FAQ



  • Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
High Speed Split Case Fire Pump / Cast Iron Diesel Powered Fire Pump
