Diesel Engine Driven Emergency Fire Pump Centrifugal For Terminals / Oil Depots

China Diesel Engine Driven Emergency Fire Pump Centrifugal For Terminals / Oil Depots supplier
Diesel Engine Driven Emergency Fire Pump Centrifugal For Terminals / Oil Depots supplier Diesel Engine Driven Emergency Fire Pump Centrifugal For Terminals / Oil Depots supplier

Large Image :  Diesel Engine Driven Emergency Fire Pump Centrifugal For Terminals / Oil Depots

Product Details:

Place of Origin: China
Brand Name: CNP NM FIRE
Certification: NFPA20/UL/FM/EN12845/CCCF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Packing
Delivery Time: 30-45 Working Days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Certification:: UL/FM/NFPA20 Engine:: DE MAAS & NM Fire
Control Panel:: Tornatech (UL/FM) Color: Blue
Engine: Diesel / Electric Motor Use: Firefighting

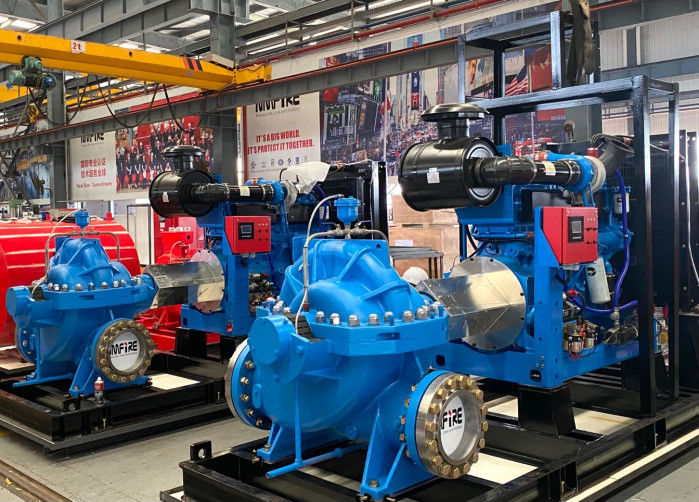

Diesel Engine Driven Emergency Fire Pump With Horizontal Centrifugal Split case Fire Pump UL/FM Approval



  • A split case pump is a type of centrifugal pump in which the pump’s casing is split into two separate chambers. This type of pump is different from an inline pump or an end suction pump in which the discharge nozzle and the suction nozzle are both included in one chamber.
  •
  • The split case pump has both the discharge and suction connections in the lower half of the pump casing, in an opposing configuration to each other. The pump’s impeller is normally mounted on a shaft that is supported by bearings on two sides.
  •
  • The pump also comes in a variety of configurations and designs including horizontal, vertical, vertical open shaft and close coupled configurations; with counter clockwise or clockwise rotation design options.



Application:



Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, etc.



Performance Ranges:





UL:



 Q: 500-4000GPM  H:100-190PSI



FM:



 Q: 500-4000GPM  H:100-190PSI



CCCF:



 Q:20-500L/S  H:0.42-2.0Mpa



NFPA20:



 Q: 300-8000GPM  H:60-300PSI





Product Type:



Diesel engine driven fire pump sets with air cooling & water cooling



NFPA20 Package





Advantage:



NM Fire is the firt member of NFPA from Chinese pump manufacturers. The production of fire pump groups is strictly in accordance with NFPA20, production process and performance testing also meet the requirement of ISO9001, some kinds of products have got APSAD (France), UL,FM and CCCF certificates.



We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well, also the firt company in the world who was authorized by UL CCIC as witness testing center for both fire pump and fire fighting engines.





Service:



1 . Examine the equipment;5.Take initiative to eliminate the troubles rapidly;
2 . Provide technical support;
3 . Establish long-term and friendly relationship.
4 . Service commitment
