UL FM Approved Skid Mounted Fire Pump Containerized Package

Place of Origin China
Brand Name CNP NM FIRE
Certification NFPA20/UL/FM/EN12845/CCCF
Model Number ESF50/26 (2.5"x2")
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Seaworthy Packing
Delivery Time 75 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA20 Flow 250GPM
Pump CNP NM FIRE Casing: Ductile Cast Iron
Head 90PSI Color Red
High Light

fire pump skid package

,

fire fighting pump system

,

FM Approved Fire Pump 250GPM

Leave a Message
Product Description

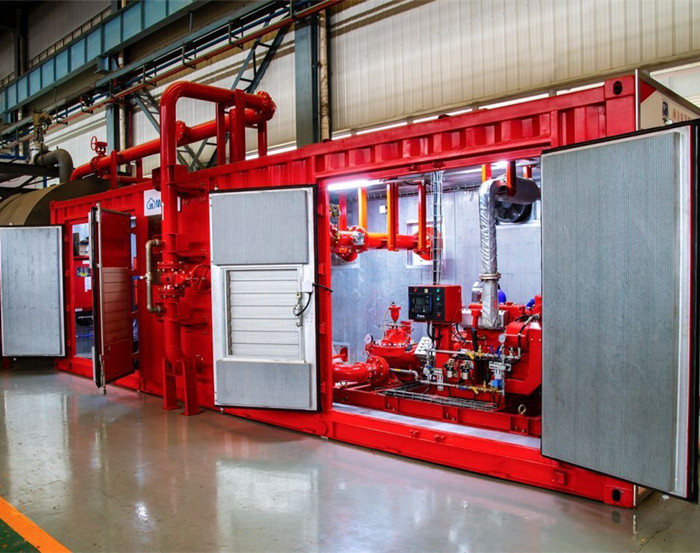

UL FM Approved Skid Mounted Fire Pump Containerized Package



DEMANDS INFO FORM8.31.51.pdf

Our NFPA-20 compliant packaged fire pump systems take the hassle out of your installation. There is no need to track down, order, store, or transport hundreds of individual components. All an installing contractor has to do is connect the suction and discharge and provide power to the controllers.

The end suction centrifugal pump is a kind of centrifugal pump that has a casing with the suction coming from one side and the discharge coming out the top. End suction pumps are almost entirely single stage pumps, meaning they only have one impeller.




It is also the most common layout for centrifugal pumps and the least expensive design in most instances. A wide variety of sizes, designs and materials of construction are on offer by various manufacturers for various applications ranging from water at ambient temperatures to high temperature and high pressure viscous oils, corrosive chemicals, and abrasive slurries. UL Listed, FM Approved Performance; Electric and Diesel Driven; Back Pullout Design for Easy Pump Service without Disconnecting Pipe; Frame-Mounted Design; Designed for Installations such as Schools, Office Buildings, and Hospitals…..

Flows: 100~750gpm; Pressure: 50~225psi



Parameters:


HEAD PUMP MODEL SPEED MAX SHAFT POWER MOTOR DRIVER
PSI FEET METER RPM HP KW MODEL(TECHTOP&UL) HP KW
90* 208* 63* ESF50/26
(2.5"x2")
2980
(50Hz)
25 18.6 T180M-2
(IEC/TEFC)
30 22



Pump types:
End suction pump, Jockey pump, In-line pump

Configuration types:
1.Electric motor driven fire pump Sets
2.Diesel engine driven fire pump Sets
3.jockey pump Sets


Performance Ranges:



UL:


 Q: 100-750GPM  H:100-145PSI


FM:


 Q: 100-750GPM  H:100-145PSI


CCCF:


 Q:5-150L/S  H:0.40-1.6Mpa


NFPA20:


 Q: 100-2250GPM  H:60-230PSI




 Advantage:

First-Class testing and inspection equipment.
UL certification represents the world's highest technical standards of fire certification,but also means that certified fire products must withstand the most extreme,harsh test process,the purpose of certification designed to verify whether the product meets the performance,safety and quality requirements,so as to achieve the purpose of property protection.
NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the strict requirements of UL certification.

Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
4. Professional team service
5. Customiszed production for different package
6. No delay on shipment
