NFPA20 Accordance Fire Pump Skid Package With Split Case Fire Pump Sets 150PSI

Place of Origin China
Brand Name CNP NM FIRE
Certification UL/FM
Model Number package
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 30-45 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA 20 Pump SCF200-150-460 (8x6")
Casing: Ductile Cast Iron Flow 1500GPM
Head 150PSI Color Red
High Light

fire pump skid package

,

fire fighting pump system

Leave a Message
Product Description

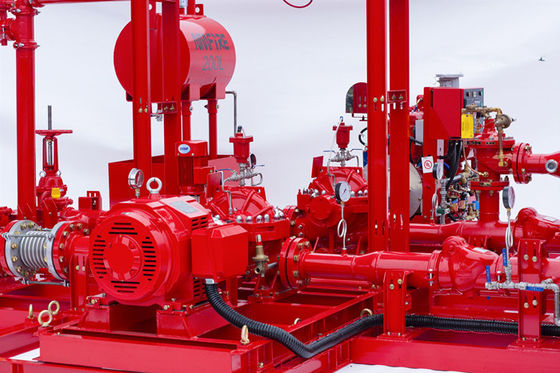

UL Listed Skid Mounted Fire Pump With Split Case Fire Pump Sets NFPA20 Accordance On 1500GPM @ 150PSI

Package fire pump system consists of pumps, driver, controllers and accessories mounted on a common base frame. High quality UL / FM certified components are used in these systems complying with the requirements of NFPA 20. The automatic air release valve, casing relief valve, suction gauge & discharge gauge are mounted on fire pumps and other accessories are mounted on pre-constructed interconnecting piping as required by NFPA 20.
These systems are subjected to rigorous performance tests at factory as per UL, FM & NFPA standards to ensure proper performance of the system as per the design requirements.
Series standard packaged pump sets includes a wide variety of fire pump units start from 200gpm sizes up to 4000gpm
“Fire Pump Unit Controller is the Pump Package brain that designed to Control & Monitor the operation of the fire pump package drivers(Electrical /Diesel /Jockey), and makes up pumps for both Manual & Automatic modes, as well as turns pumps drivers ON/OFF under specific conditions.


Testing Facility:
Individual components test facility.
Pump performance test.
Pump hydrostatic test.
Complete package test with automatic operation.
String test.
Driver load test.
Simulating field test.


 Parameters:



HEAD PUMP MODEL SPEED MAX SHAFT POWER MOTOR DRIVER DIESEL ENGINE DRIVER
PSI FEET METER RPM HP KW

MODEL
(TECHTOP&UL)

HP KW

MODEL
(NM&UL)

HP KW MODEL(DE MAAS&FM) HP KW
150 346 106 SCF200-150-460
(8x6")
1800
(60Hz)
308 229.5 TXC 586/7T350U4B
(NEMA/TEFC)
350 280 NM6-128 473 352 DF12TiH-F 338 252


Pump types:

Split-case pump, Jockey pump, In-line pump


Configuration types:


1.Electric motor driven fire pump sets
2.Diesel engine driven fire pump sets
3.jockey pump sets







Standard:



  • UL Listed
  • FM Approval
  • NFPA20 Package



Performance Ranges:



UL:


 Q: 500-4000GPM  H:100-190PSI


FM:


 Q: 500-4000GPM  H:100-190PSI


CCCF:


 Q:20-500L/S  H:0.42-2.0Mpa


NFPA20:


 Q: 300-8000GPM  H:60-300PSI


  Application:


ndustrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;

Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;


Service:


1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
4. Professional team service
5. Customiszed production for different package
6. No delay on shipment



NFPA20 Accordance Fire Pump Skid Package With Split Case Fire Pump Sets 150PSI 0
