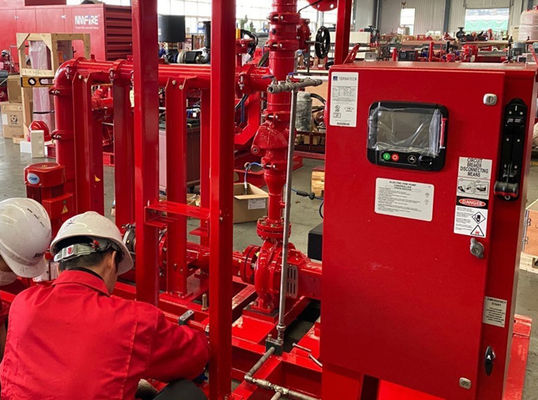

Horizontal Skid Mounted Fire Pump With Ductile Cast Iron Materials UL/FM Listed

Place of Origin China
Brand Name CNP NM FIRE
Certification UL/FM
Model Number package
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Export Packing
Delivery Time 30-45 Working Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification UL/FM/NFPA 20 Pump SCF125-80-350G (5x3")
Casing: Ductile Cast Iron Flow 750GPM
Head 170PSI Color Red
High Light

fire fighting pump system

,

diesel engine pump set

,

Ductile Cast Iron Fire Pump

Leave a Message
Product Description

NFPA20 Accordance 750GPM @ 170PSI Skid Mounted Fire Pump With Horizontal Split Case Fire Pump Sets By UL/FM Listed



NM designs and manufactures custom and pre-engineered skid package fire pump systems. These systems are factory assembled and tested, leaving only pipe connections, power connections and structural base grouting to be completed on site. All fire pump packages built to NFPA 20 standards with UL listed / FM approved components.



This all-in-one solution objetive is to eliminate the complexity and problems of on site assembly. We ensure all package skids meet inspection requirements of local National Building Code, NFPA 20 Standards and Insurance companies.


Fire pump packages also reduce the cost of assembly, quick installation means less work and time spent on installation, and your fire pump system can be fully operational very quickly. This fire protection pumping solution that NM provides is a superior quality fire system with reliability and inbuilt safety.



Advantages:
Easy to install fire pump set at site.
Easy to commission.
Reduced installation time.
Pre-wired electrical connections.
Less space requirement.
All (pumps, drivers & controllers) on single base
Security:
Single manufacturing source.
Single unit responsibility
100% system operational integrity.
100% secure system.
Convenience in procuring spare parts .
All major components listed products.
Complying with NFPA 20
Testing Facility:
Individual components test facility.
Pump performance test.
Pump hydrostatic test.
Complete package test with automatic operation.
String test.
Driver load test.
Simulating field test.




Parameters:

HEAD PUMP MODEL SPEED

MAX

SHAFT POWER

MOTOR DRIVER DIESEL ENGINE DRIVER
PSI FEET

ME

TER

RPM HP KW

MODEL

(TECHTOP&UL)

HP KW

MODEL

(NM&UL)

HP KW

MODEL

(DEMAAS&FM)

HP KW
170 393 120 SCF125-80-350G
(5x3")
2980
(50Hz)
139 103.6 T 280M2-2
(IEC/TEFC)
150 110 NM6-102 126 94 IF05ATH-F 130 97


 NM package fire pump system consists of pumps, driver, controllers and accessories mounted on a common base frame. High quality UL / FM certified components are used in these systems complying with the requirements of NFPA 20. All necessary wiring between controllers and drivers are done at factory prior to shipment. The automatic air release valve, casing relief valve, suction gauge & discharge gauge are mounted on fire pumps and other accessories are mounted on pre-constructed interconnecting piping as required by NFPA 20. Pressure sensing lines are pre-installed on Electric, Diesel, and Jockey Controllers as per NFPA 20 requirements.


These systems are subjected to rigorous performance tests at factory as per UL, FM & NFPA standards to ensure proper performance of the system as per the design requirements. For completing the installation of these pre-engineered 'ready to install' packages the installing contractor only needs to grout the structural base, connect the suction & discharge pipes and incoming power.





Performance Ranges:



UL:


 Q: 500-4000GPM  H:100-190PSI


FM:


 Q: 500-4000GPM  H:100-190PSI


CCCF:


 Q:20-500L/S  H:0.42-2.0Mpa


NFPA20:


 Q: 300-8000GPM  H:60-300PSI





Pump types:


Split-case pump, Jockey pump, In-line pump


Configuration types:


1.Electric motor driven fire pump sets
2.Diesel engine driven fire pump sets
3.jockey pump sets


Standard:


UL Listed
FM Approval
NFPA20 Package
