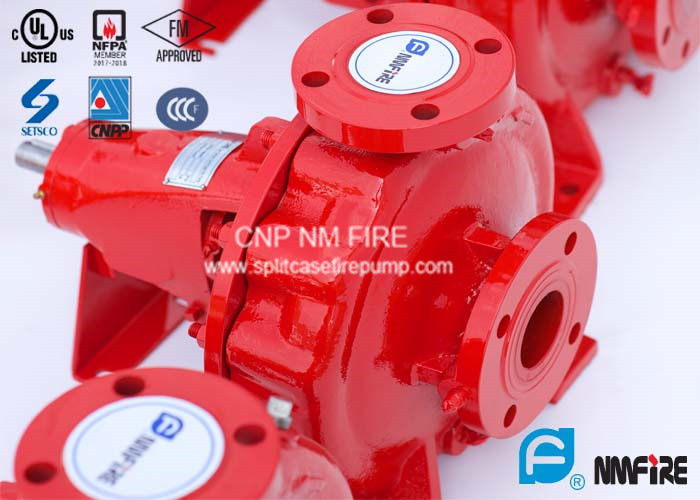

FM Approved End Suction Fire Pump 400GPM / 155PSI For Pipelines Bureaus
| Place of Origin | China |
|---|---|
| Brand Name | CNP NM FIRE |
| Certification | NFPA20/UL/FM/EN12845/CCCF |
| Model Number | PA65/32H （2.5"x2") |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Export Packing |
| Delivery Time | 30-45 Working Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | UL/FM/NFPA20 | Flow | 400GPM |
|---|---|---|---|
| Pump | CNP NM FIRE | Casing： | Ductile Cast Iron |
| Head | 155PSI | Color | Red |
| High Light | horizontal end suction centrifugal pumps,single stage fire pump |
||
Product Description
FM Approved Centrifugal End Suction Fire Pumps 400GPM @ 155PSI By UL Listed Fore Firefighting
End Suction Pump Series with Hydraulically balanced impeller to extend bearing life. Available in electric motor or diesel engine driven configurations.
Capacity to 750 GPM
Pressures to 225 PSI
Features and Benefits
Top centerline discharge with foot supported casing.
Ease of installation.
Simplifies piping layout.
Reduces problems associated with piping strain.
Self-venting design eliminates the need for automatic air release valve.
Rear pullout design supplied as standard with spacer coupling.
Ease of maintenance, eliminates disturbing driver or piping when removing rotating element.
Hydraulically balanced impeller extends bearing life and assures smoother operation.
Available in electric motor or diesel engine driven configuration.
Parameters:
|
||||||||||||||||||||||
NFPA20, UL, FM, EN12845,CCCF
How it Works:
The end suction centrifugal pump normally contains a single impeller and a spiral like casing. The fluid that is being pumped moves along the impeller’s vanes, which increases the fluid’s velocity. From there the fluid is moved into the spiral like casing, where the high velocity is transformed into high pressure by a diffusion process.
Performance Ranges:
|
UL:
|
Q: 100-750GPM | H:100-145PSI |
|
FM:
|
Q: 100-750GPM | H:100-145PSI |
|
CCCF:
|
Q:5-150L/S | H:0.40-1.6Mpa |
|
NFPA20:
|
Q: 100-2250GPM | H:60-230PSI |
Product Type:
End Suction Fire Pump
NFPA20 Package
Advantage:
NM Fire is the firt member of NFPA from Chinese pump manufacturers. The production of fire pump groups is strictly in accordance with NFPA20, production process and performance testing also meet the requirement of ISO9001, some kinds of products have got APSAD (France), UL,FM and CCCF certificates.
We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well, also the firt company in the world who was authorized by UL CCIC as witness testing center for both fire pump and fire fighting engines.
